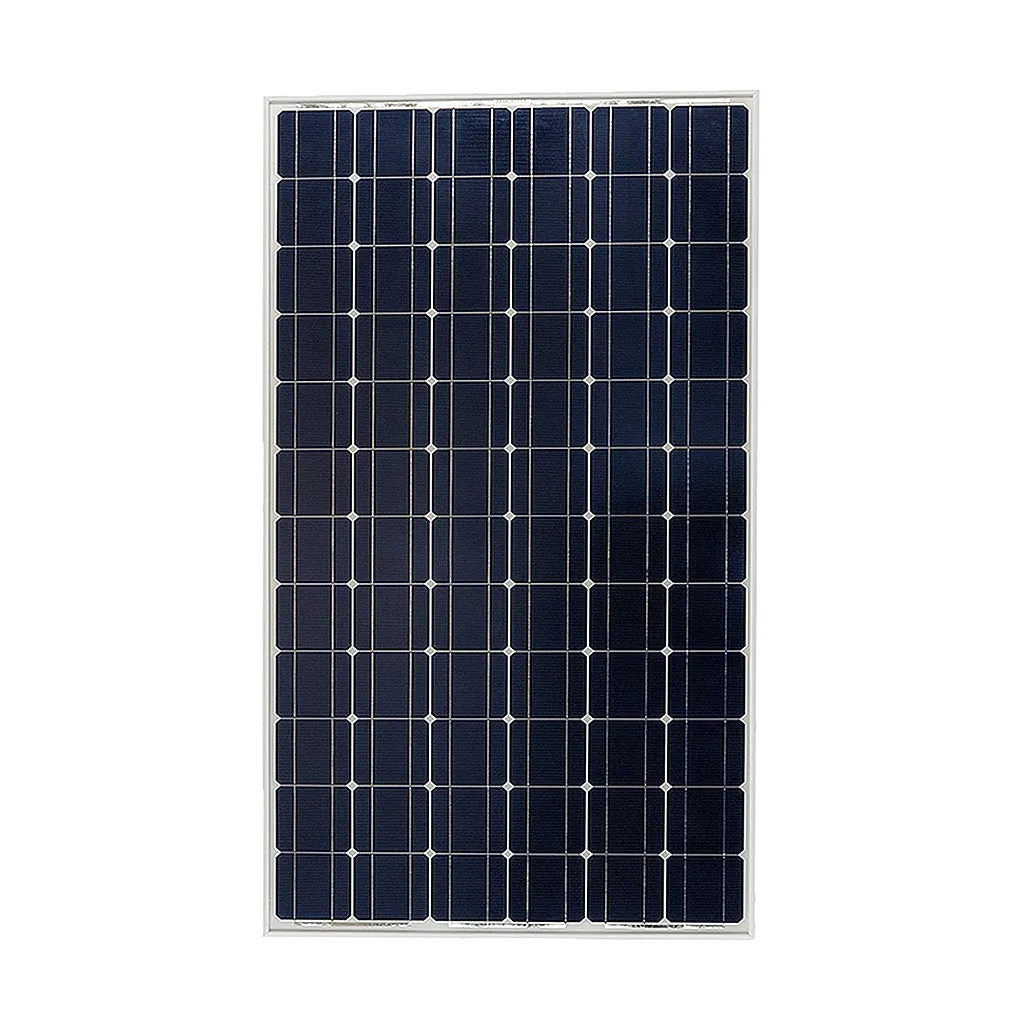

1658x1002x35MM • SERIES 4B • MONOCRYSTALLINE WITH SILVER FRAME • 5 YEAR WARRANTY
Victron solar panels are made using high quality Polycrystalline and Monocrystalline cells. Victron provide a full range of solar panel modules ranging from 20W - 360W. They are designed for charging deep cycle batteries, for example in vehicles and boats, motor homes, caravans, camping, marine or any other systems with a 12V battery or battery bank.
Solar panels can be utilised to extend battery run time when powering multiple accessories. A number of factors that can influence this include: the time of year, weather conditions, battery capacity and how long you run your appliances. It's important to over size your solar array (where space allows) so that on a good day your solar panels will be able to fully charge your batteries and keep your loads running whilst free camping.
Model | SPM043052002 |
Cell type | Monocrystalline |
Number of cells in series | 60 |
Nominal power (Watts) | 305 |
Open Circuit Voltage (Volts) | 39.7 |
Maximum Power Voltage (Volts) | 32.5 |
Short Circuit Current (Amps) | 10.27 |
Maximum Power Current (Amps) | 9.38 |
Power (Max.) | 305W |
Temp Range | -40 to 85°C |
Length of cable / connector | 900mm / MC4 |
Power Tolerance | ±3% |
Maximum system voltage | 1000V |
Size (LxWxH) | 1658 x 1002 x 35mm |
Weight | 18kg |
Warranty -Product warranty |
|
