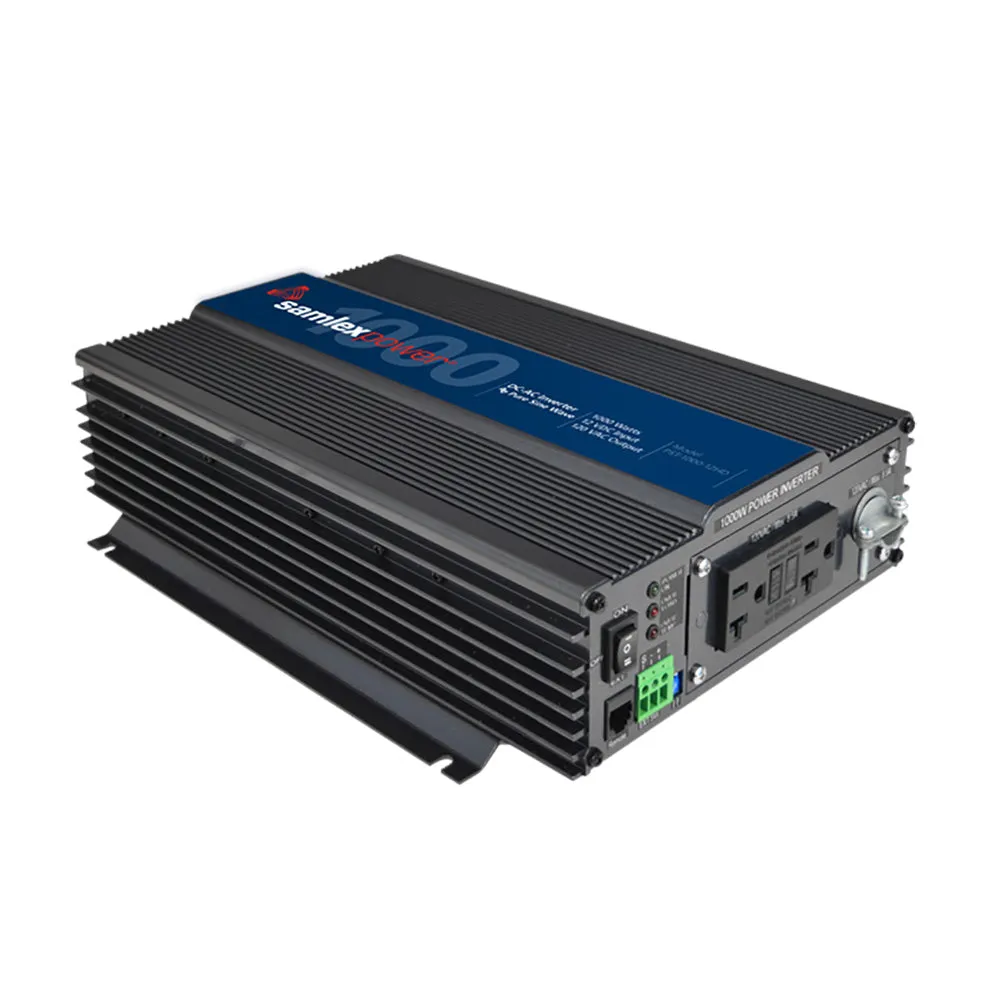

PST-1000-12HD Pure Sine Wave Inverter 12V Input 120 VAC Output 1000W

PST-1000-12HD is a pure sine inverter and features a hardwire connection for flexibility in installation, selectable low voltage shutdown (battery protection), and a low voltage alarm and alarm buzzer disable switch. PST-1000-12HD is user-friendly, easy to install, and has a small footprint. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

All Samlex PST series pure sine inverters are high-efficiency, offer quiet operation, low-idle power draw, GFCI-protected outlets, and a universal protection circuit – low voltage, over temperature, overload, and short circuit.

Features:

• Selectable low voltage shutdown settings
• Enable/ Disable Buzzer DIP Switch
• Low voltage alarm and alarm buzzer disable switch
• Commercial-grade, suitable for heavy-duty loads, long periods of continuous operation and emergency backup
• Hardwire connection for choice & flexibility in installation
• GFCI-protected AC outlets
• Compact design, ideal for small spaces
• Wide operating DC input range: 10.0 – 18.0 VDC
• Wide operating temperature range: -13°F to 131°F / -25°C to 55°C
• Ignition ON/OFF – 1 wire input
• Temperature-controlled cooling fan – reduces energy consumption
• Universal Protection Circuit – Low Voltage, Over Temperature, Overload, and Short Circuit
• Low idle power draw
• Optional remote control (sold separately): Model RC-15A

Specifications:

• Input: 12 VDC
• Output: 120 VAC
• Watts: 1000 Watts
• Surge: 2000 Watts
• Weight: 8.33 (lbs)
• Weight: 3.78 (kg)
• Dimensions: 13.11 x 9.37 x 3.23 (in)
• Dimensions: 333 x 238 x 82 (mm)
• Safety: ETL Listed. Conforms to UL Std.
• 3-Year Limited Warranty

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Fieldwork/Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers
